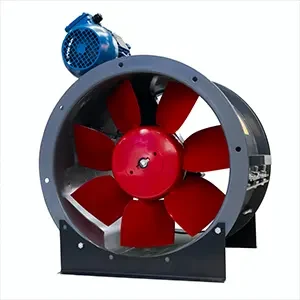

Symbiosis Axial Flow Fans
Symbiosis is the Pioneer and acknowledged leader in Air Technology offering a wide range of Industrial air blowers and axial flow fans suitable for Industrial ventilation, Air Conditioning, Dust extraction and Fume extraction systems. Custom built fans catering to the specific requirement of Steel Plant, Fertilizer Plant, Tea Industry, Mine, Ship, Power Plants (Thermal and Nuclear) Chemical Plant etc. are also available.
- Louvre Shutter
- Wall Cowl and Bird Screen
- Filter / Filter Frame with adapter cone
- Dampers
FEATURES OF SYMBIOSIS AXIAL FLOW FANS
Symbiosis Axial Flow Fans are available in wide range of combination from 12″ to 55″ diameter fitted with Motors from 0.37 kW to 110 kW in 2 Pole, 4 Pole, 6 versions. Motors are suitable for 415 volts ±10%, 50 Hz ±5%, 3 Phase Power Supply, as per IS:325/1996, which are in-house manufactured ensuring better fitment and proper matching. Fans are available in single phase version also.
Symbiosis Axial Flow Fans are capable of handling up to 300000 m3/hr air delivery and static pressure up to 75 MM WG.
Further pressure can be developed with multiple staging of fans.


CONSTRUCTION OF SYMBIOSIS AXIAL FLOW FANS
Axial Flow Fans are tested in accordance with IS-3588-1991. Standard fans are finished with synthetic enamal paint. Depending on application, fans can be supplied with casing made of stainless steel or zinc sprayed MS sheet. Epoxy / chlorinated rubber paint may also be provided

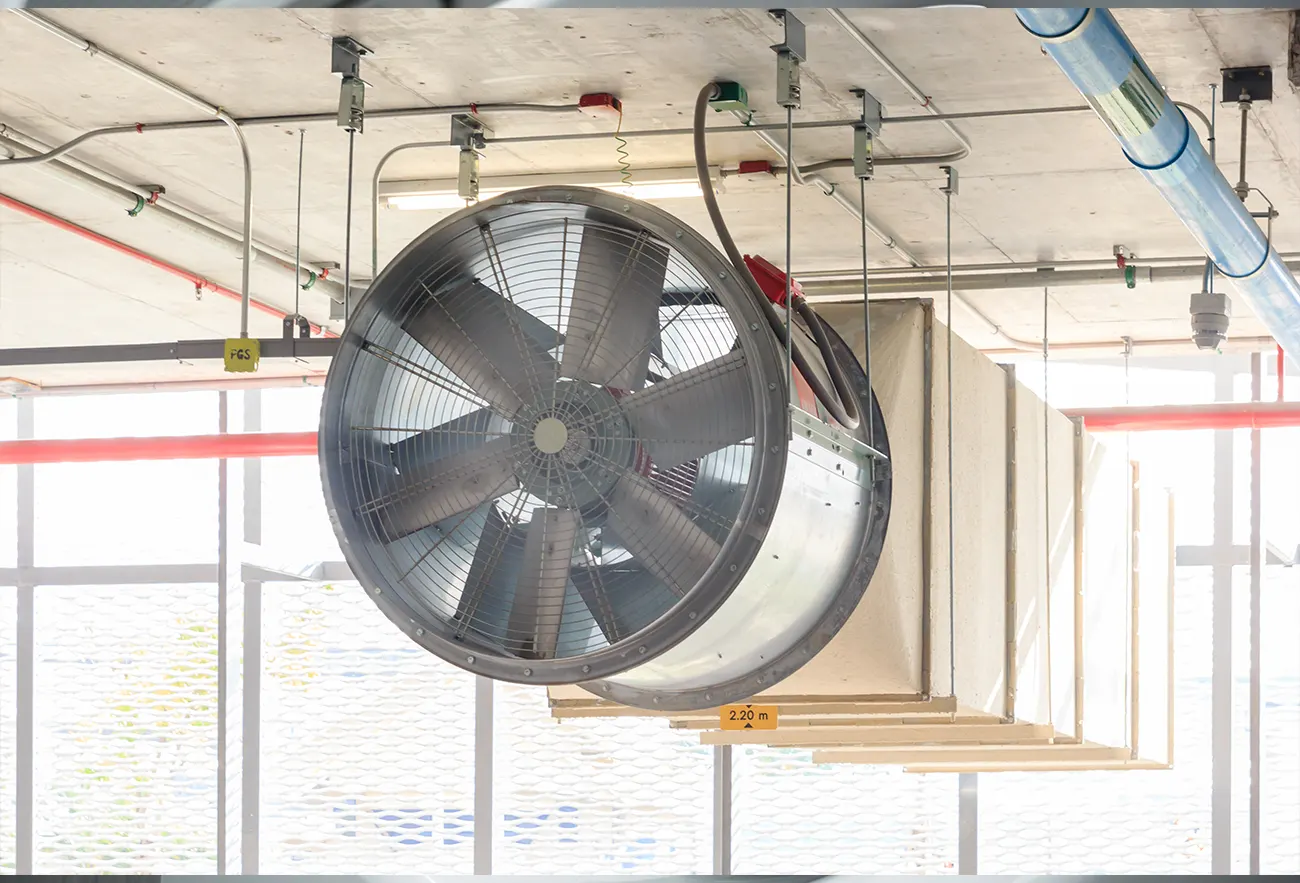

Fans are available both in Wall Mounted and Duct Mounted configuration. Fan selection chart and general arrangement dimensions are given in Table Following special application fans are also offered depending on application and end use.
Fan Casing is made of heavy gauge MS Sheet (as per IS-1079/2062) having robust construction. It has flanges at both ends for easy fixing on ducts/walls.
Impeller is made of Die Cast aluminium (LM-6 of BS 1490/IS 617 Gr. 4600) having aerofoil design with adjustable pitch angles. The solidity (No. of wings) is varied in order to use the most efficient part of the fan characteristics

Bifurcated Fans
Symbiosis Bifurcated Fans are available from sizes 19″ to 55″. These fans are used to handle hazardous air, where motors are kept outside the air stream.

Flame Proof Fans
Symbiosis Flame Proof Axial Fans are available from sizes 15″ to 55″ and are used extensively in Fire Hazard Areas.

Roof Extractor Unit
Symbiosis Roof Extractor Units are available from sizes 19″ to 55″, fitted with Hood and Bottom Plate. These units are used on the roof to extract and exhaust contaminated air.

Belt Driven Fan
Symbiosis Belt Driven Fans are available from sizes 19″ to 55″. In which, Fans are driven by belt and pulley arrangement and The motor is located outside the air stream.
Tubular Type


Applications
Our highly advanced Single Layer Roll Forming Machine is an excellent choice for manufacturing single layer roofing sheets for varied commercial and domestic purposes like:
- Smelters
- Steel Mills
- Foundries
- Boiler Making
- Laundries
- Brick Klins
- Glass Works
- Textiles
- Bakeries
- Power Station
Which frequently experience the problem of local hot spots or pollution. Permanent systems to overcome these problems may be uneconomical or impractical. Hence, Symbiosis axial flow fans can work as ideal Air Pollution Control Equipments for such industrial problems.
